Tracking Guides or Spill Edges

< Back to fabrication



Our durable and flexible guide strips can we welded onto the top and bottom of our conveyor belts for numerous purposes such as belt tracking, spill edges or even as cleats in incline situations.

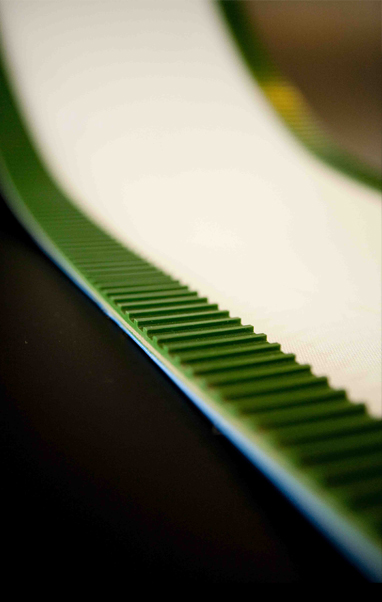

There are three standard types available shown below along with castellated guides shown in the picture on the right hand size which can be cut to any width.





Type M

Type K

Type R





Type

W
Width
(mm)

H
Height
(mm)

Weight
(g/m)

Drum diameters

Cleat
(mm)

Spill Edges
(mm)

Chevron (mm)




M6

6

4

22

30

30

30

M8

8

5

42

50

50

50

M10

10

6

61

70

70

70

M13

13

8

98

90

90

90

M17

17

11

170

100

100

100

K8

8

5

35

50

50

50

K10

10

6

51

60

60

60

K13

13

8

86

70

70

70

K17

17

11

150

90

90

90

R8

8

8

77

60

135

200

R12

12

12

120

60

180

320

R15

20

15

300

135

320

400
